Cable Type: 4x2x23# S/FTP CAT7 100 Ohm Indoor Network Cable

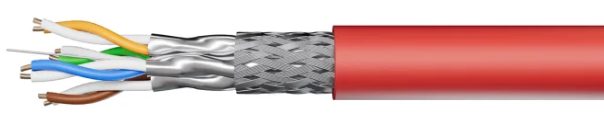

Category 7 S/FTP indoor cable, tested up to 1000*MHz. The cable contains 4 individually foil shielded twisted pairs cabled together, overall braid shielded with aluminum/magnesium alloy and overall jacketed with LS0H compound for indoor use.
Physical Characteristics
Inner Conductor Solid 23AWG BC, Bare Copper
Insulation SFS-PO
Number of Conductor Twisted 4 pairs: Blue/White, Orange/White, Green/White, Brown/White
Shield #1 Individual pair shield, aluminum foil, 100% coverage
Drain Wire 0.5mm CCA, Solid Copper Clad Aluminum
Shield #2 Overall shield, aluminum foil 100% coverage
Shield #3 Aluminum/Magnesium alloy braiding, 45% coverage
Outer Jacket LSZH, low smoke zero halogen
Jacket Color Red, RAL3031
Jacket Thickness 0.5mm nom
Overall Diameter 7.2±0.20 mm
Mechanical Properties
Minimum bend radius 8 x cable OD
Installation Temperature -20 to +70°C
Storage temperature -20 to +70°C
Operating temperature -40 to +60°C
Jacket Tensile Properties before aging
Tensile strength 10.0MPa min.
Elongation 125% min.
Jacket tensile strength 8.0 Mpa min.
Elongation 100% min.
Pulling force 100N Max.
Total weight 54 kg/km nom.
*Electrical parameters indicated above 600MHz are non-binding nominal values provided for reference only.
Electrical Properties
Mean Impedance 100±5 Ohm @ 0-1000* MHz
DC Resistance 9.38 Ohm/100m max
Resistance unbabance-core to core 2% max.
Resistance unbalance-pair to pair 4% max.
Mutual capacitance 56 nF/km max. @ 1 kHz
Cap.Unbalanace(wire to ground) 160 pF/100m max. @ 1 kHz
Delay Skew 25 ns/100m max.
Voltage rating 72 Vdc max
| Transmission Properties @ 20C (extended to 1GHz) | |||||||
| MHz | RL Db min. | Attenuation Db/100m max. | NEXT Db | Phase Delay ns Max. | PS NEXT dB min. | ELFEXT Db/100m | PS ELFEXT Db/100m min. |
| 1 | 20.0 | NA | 78.0 | 570.0 | 75.0 | 78.0 | 75.00 |
| 4 | 23.0 | 3.74 | 78.0 | 552.0 | 75.0 | 78.0 | 75.00 |
| 8 | 24.5 | 5.24 | 78.0 | 546.7 | 75.0 | 75.9 | 72.90 |
| 10 | 25.0 | 5.86 | 78.0 | 545.4 | 75.0 | 74.0 | 71.00 |
| 16 | 25.0 | 7.41 | 78.0 | 543.0 | 75.0 | 69.9 | 66.90 |
| 20 | 25.0 | 8.29 | 78.0 | 542.0 | 75.0 | 68.0 | 65.00 |
| 25 | 24.3 | 9.29 | 78.0 | 541.2 | 75.0 | 66.0 | 63.00 |
| 31.25 | 23.6 | 10.41 | 78.0 | 540.4 | 75.0 | 64.1 | 61.10 |
| 62.5 | 21.5 | 14.88 | 75.5 | 538.6 | 72.5 | 58.1 | 55.10 |
| 100 | 20.1 | 19.02 | 72.4 | 537.6 | 69.4 | 54.0 | 51.00 |
| 150 | 18.9 | 23.56 | 69.8 | 536.9 | 66.8 | 50.2 | 47.20 |
| 200 | 18.0 | 27.47 | 67.9 | 536.5 | 64.9 | 48.0 | 45.00 |
| 250 | 17.3 | 30.97 | 66.4 | 536.3 | 63.4 | 46.0 | 43.00 |
| 300 | 17.3 | 34.19 | 65.2 | 536.1 | 62.2 | 44.4 | 41.50 |
| 600 | 17.3 | 50.10 | 60.7 | 535.5 | 57.7 | 38.4 | 35.40 |
| 700* | 14.2 | 54.63 | 59.7 | 535.4 | 56.7 | 37.1 | 34.10 |
| 1000* | 13.1 | 66.93 | 57.3 | 535.1 | 54.4 | 34.0 | 31.00 |
*Transmission parameters indicated above 600MHz are non-binding nominal values provided for reference only.
Packing Information:
Cable Length Packing

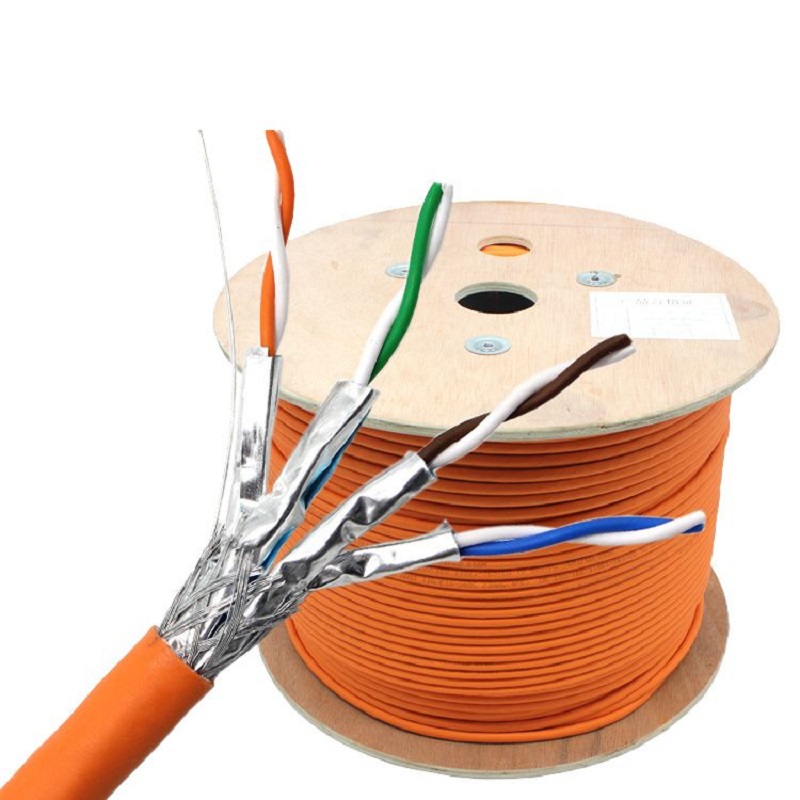

100m Wooden Drum
305m Wooden Dru
