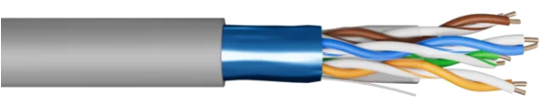

Cable Type: 4x2x24# F/UTP Category 5e PVC Indoor Cable
Category 5e F/UTP indoor cable, the cable contains 4 twisted pairs cabled together, overall shielded with aluminum foil and jacketed with PVC compound for indoor use.
Physical Characteristics
Inner Conductor Solid 23AWG, bare annealed copper
Insulation HDPE, 1.0±0.05mm
Number of Conductor Twisted 4 pairs: Blue/White, Orange/White, Green/White, Brown/White
Drain Wire 0.5mm, Solid Copper Claded Aluminum
Shield #1 Aluminum foil, 100% coverage
Rip Cord Yes
Outer Jacket PVC for indoor use
Jacket Color Grey, or customer's request
Jacket Thickness 0.5mm nom.
Overall Diameter 5.8±0.20 mm.
Mechanical Properties
Minimum bend radius 8 x cable OD
Installation Temperature -20 to +60°C
Storage temperature -20 to +60°C
Operating temperature -20 to +60°C
Pulling force 70N Max.
Total weight 34 kg/km nom.
Electrical Properties
Impedance 100±5 Ohm @ 0-1000* MHz
DC Resistance 9.5 Ohm/100m max.
Insulation Resistance 5000 MegaOhm*KM min. @500V DC/ 1m
Capacitance 5.6 NF/ 100m nom.
Resistance Unbalance(core to core) 2% max.
Nominal Velocity of Propagation 67%
Dielectric Strength 1000 V DC/ 1m
Voltage rating 72 Vdc max
Transmission Properties @ 20C (extended to 1GHz)
Propagation Delay 491 ns/ 100m max. @100MHz
Delay Skew 44ns/ 100m max.
| MHz | RL Db min. | Insertion Loss Db/ 100m max | NEXT Db mim. | PS NEXT dB min. |
| 1 | 19.0 | 4 | 60.0 | 57.0 |
| 4 | 19.0 | 4.00 | 54.8 | 51.8 |
| 10 | 19.0 | 6.10 | 48.5 | 45.5 |
| 16 | 19.0 | 7.70 | 45.2 | 42.2 |
| 20 | 19.0 | 8.70 | 43.7 | 40.7 |
| 31.25 | 17.1 | 10.90 | 40.5 | 37.5 |
| 62.5 | 14.0 | 15.80 | 35.7 | 32.7 |
| 100 | 12.0 | 20.40 | 32.3 | 29.3 |
Packing Information:
Cable Length Packing
100M Plastic Reel/ Pull Box
305m Pull Box
